In today's fast-paced technological landscape, reliable electrical connections are crucial for the performance and safety of various devices. The E16 Molded Hole Type Straight Plug is a versatile solution that has gained popularity across multiple industries. At CAZN, we specialize in providing high-quality connectors, including the E16 series, designed to meet diverse application needs. This guide will delve into the features, specifications, and applications of the E16 molded hole type straight plug.

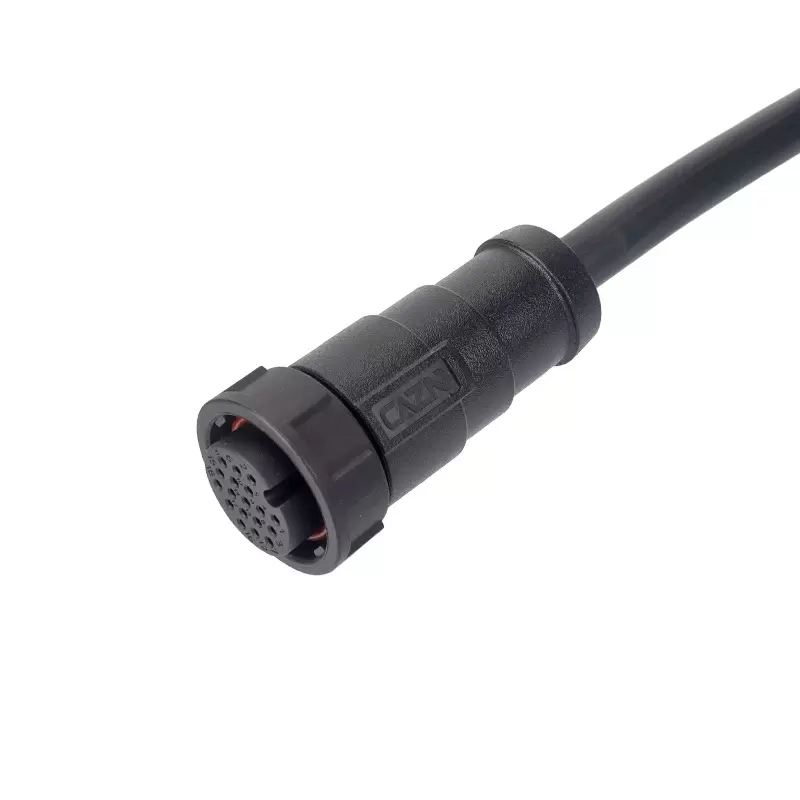

 What is the E16 Molded Hole Type Straight Plug?

The E16 molded hole type straight plug is a plastic waterproof connector characterized by its molded straight design and snap-on connection method. This connector is suitable for various applications where secure and efficient electrical connections are required. It features multiple pin configurations, including 2, 3, 4, 5, 6, 7, 18, 20, 21, and 22 pins, allowing for flexibility in wiring setups.

 Key Features

1. Durable Construction

   The E16 plug is made from thermoplastic plastic PA66 with a flame retardant grade of V-0, ensuring durability and resistance to high temperatures.

2. Gold-Plated Contacts

   The contacts are made from copper and gold-plated to enhance conductivity and prevent corrosion, ensuring long-lasting performance.

3. Waterproof Ratings

   With an IP67 and IP68 waterproof rating, the E16 plug is designed to withstand harsh environmental conditions, making it ideal for outdoor applications.

4. Wide Temperature Range

   The plug operates effectively in temperatures ranging from -40℃ to +105℃, making it suitable for various industrial environments.

5. Easy Installation

   Featuring a bayonet coupling mechanism and solder termination method, the E16 plug allows for straightforward installation and maintenance.

 Specifications

- Shell Material: Thermoplastic plastic PA66

- Contact Material: Copper gold-plated

- Insulation Resistance: ≥2000mΩ

- Rated Current: 250~600V AC/DC

- Wiring Range: 6.0mm~13.0mm

- Termination Method: Soldering

- Solder Life Cycle: ≥500 cycles

 Applications

The E16 molded hole type straight plug is widely used in various sectors, including:

- Industrial Equipment: For connecting machinery and control systems.

- Automotive Applications: In vehicle wiring harnesses.

- Consumer Electronics: For reliable connections in appliances and devices.

- Renewable Energy Systems: In solar power installations and wind turbines.

- Telecommunications: For secure connections in networking equipment.

 Conclusion

The E16 Molded Hole Type Straight Plug offers a robust solution for electrical connectivity across diverse applications. With its durable construction, waterproof ratings, and wide temperature range, it stands out as an ideal choice for both industrial and consumer use. At CAZN, we are committed to providing high-quality connectors that meet your specific needs. If you have any questions about our products or require assistance in selecting the right connector for your application, feel free to reach out! We are here to help you achieve reliable electrical connections!
