Concentric Butterfly Valve Manufacturer in USA
Concentric Butterfly Valve Manufacturer in USA
SVR Global is a top concentric butterfly valve manufacturer in USA, Engineered to API, ASME, and AWWA standards, our valves provide reliable shut-off and throttling performance across municipal and industrial projects.
Concentric butterfly valves are one of the most widely used flow control solutions. With a design that places the disc in the center of the valve body and the seat fully lining the inside diameter, these valves are simple, cost-effective, and ideal for water, air, gas, and low-pressure applications.
What is a Concentric Butterfly Valve?
A concentric butterfly valve is a type of butterfly valve where the stem passes through the centerline of the disc, and the disc sits in the middle of the pipe bore. The seat is elastomeric, ensuring a tight shut-off. These valves are commonly chosen for low-pressure, low-temperature applications, making them a preferred solution for municipal water distribution and HVAC systems.
Advantages of Concentric Butterfly Valves
· Cost-Effective Flow Control
· Compact Design
· Quick Operation
· Excellent Shut-Off
· Versatility
· Low Maintenance
· Multiple End Connections
Types of Concentric Butterfly Valves -
- Wafer-Type Concentric Butterfly Valve – Cost-efficient and widely used for water and air pipelines.
- Lug-Type Concentric Butterfly Valve – Allows bi-directional flow and dead-end service.

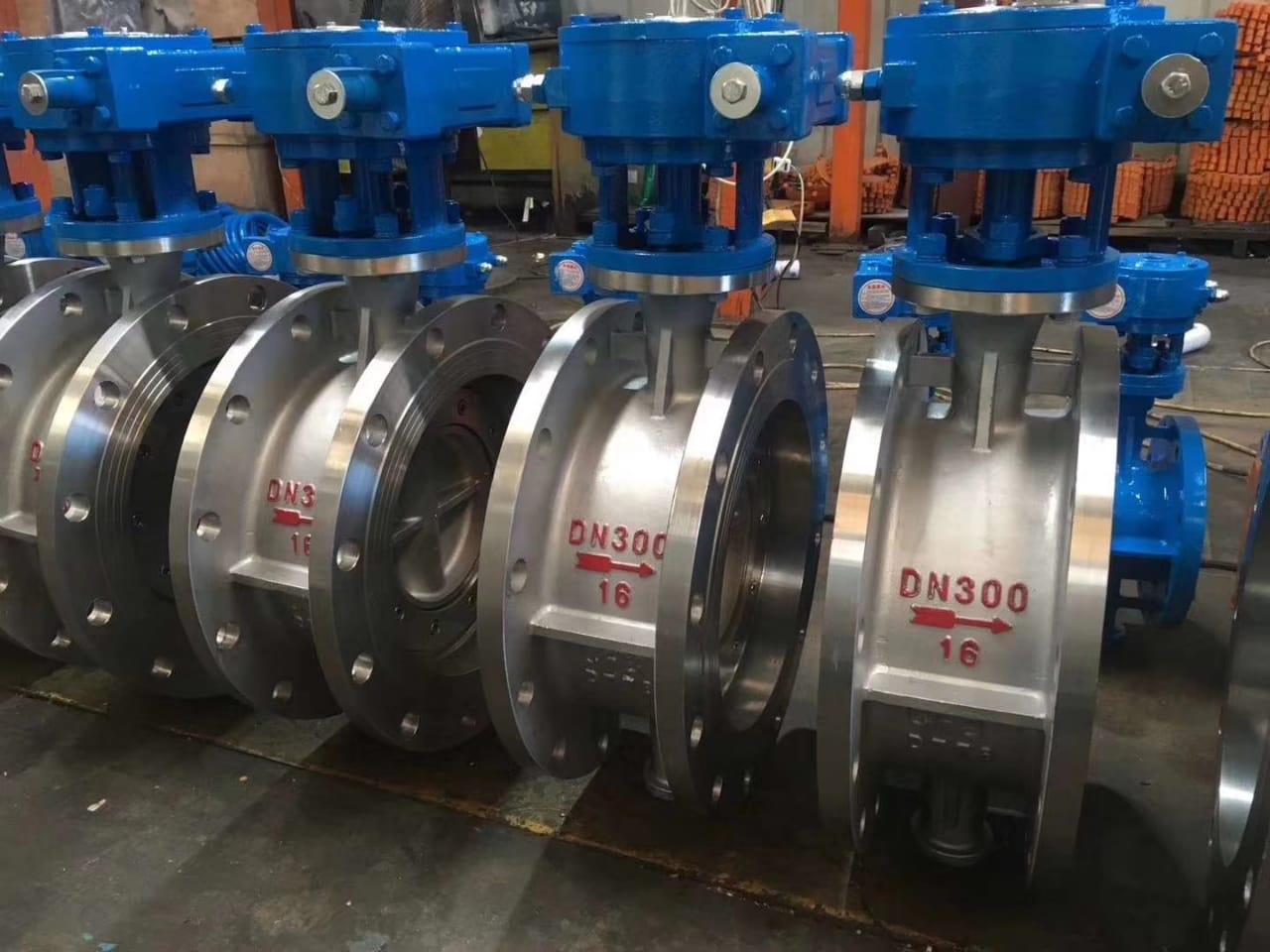

- Flanged Concentric Butterfly Valve – Provides a secure fit for larger pipeline systems.
- Rubber-Lined Concentric Butterfly Valve – Ensures zero leakage and corrosion resistance.
- Electric Actuated Concentric Butterfly Valve – Remote and automated flow control.
- Pneumatic Actuated Concentric Butterfly Valve – Fast operation for industrial applications.
Parts of a Concentric Butterfly Valve
· Valve Body – Cast iron, ductile iron, or carbon steel with epoxy coating.
· Disc – Stainless steel, ductile iron, or nickel-plated for durability.
· Seat – Resilient rubber (EPDM, NBR, or Viton) for tight shut-off.
· Stem/Shaft – Stainless steel, precision-machined for stability.
· Bearings – Reduce friction and increase valve life.
· Actuator – Manual lever, gear-operated, pneumatic, or electric actuator.
Industries Using Concentric Butterfly Valves in USA
· Water & Wastewater Treatment – Used for water distribution pipelines in municipal projects.
· HVAC Systems – Regulating chilled and hot water loops in commercial buildings.
· Chemical & Petrochemical – Safe handling of non-aggressive chemicals and utilities.
· Power Plants – Auxiliary water systems and cooling towers.
· Marine Industry – Seawater handling and ballast systems.
· Oil & Gas Utilities – Utility pipelines and low-pressure applications.
If you’re searching for a reliable concentric butterfly valve manufacturer in USA, trust SVR Global to deliver valves that combine engineering precision, cost-effectiveness, and long-term durability.
Description:
•Body Material: Cast Carbon steel (WCC,WCB, WC6), Stainless Steel, [SS316, SS304, SS316L, SS904L, CF8, CF8M, F31L, F91], Duplex Steel and Super duplex Steel (F51,F53,F55) , Cast iron, Ductile Iron.
•Size – 2” – 48”
•Class: 150 to 300; PN 6 – PN 25
•Ends: Wafer, flanged, lug
•Operations: Lever and Gear operated, Pneumatic and Electric actuated.
