What Is the Typical Pressure Range of Compound Gauges?

0
8

Pressure measurement plays a central role in many engineering and industrial systems. In mechanical flow systems, monitoring pressure helps maintain proper operation and safety. Among the instruments used to perform this task are compound gauges​. These instruments are especially useful because they can measure both pressure above atmospheric level and vacuum pressure below it. This article explores the typical pressure range of compound gauges, their application, and the factors that affect their performance.

Understanding the range of compound gauges requires a grasp of their design and function. This includes the units used for pressure measurement, the conditions under which they are used, and the importance of accuracy in systems that rely on them. The pressure range is not a fixed value for all compound gauges. Instead, it varies depending on application needs, design standards, and industry requirements.

The Purpose and Use of Compound Gauges

Measuring Both Positive and Negative Pressure

Compound gauges are designed to measure both vacuum pressure and positive pressure. Vacuum pressure refers to pressure below atmospheric level. Positive pressure refers to pressure above atmospheric level. These dual readings are useful in systems that operate across both sides of the atmospheric threshold.

Many mechanical systems experience both suction and pressure during different phases. Pumps, compressors, and HVAC systems are good examples. In such systems, compound gauges give a complete picture of system pressure behavior. By observing both vacuum and positive pressure, operators can detect system imbalances or potential failures.

Mechanical Design of Compound Gauges

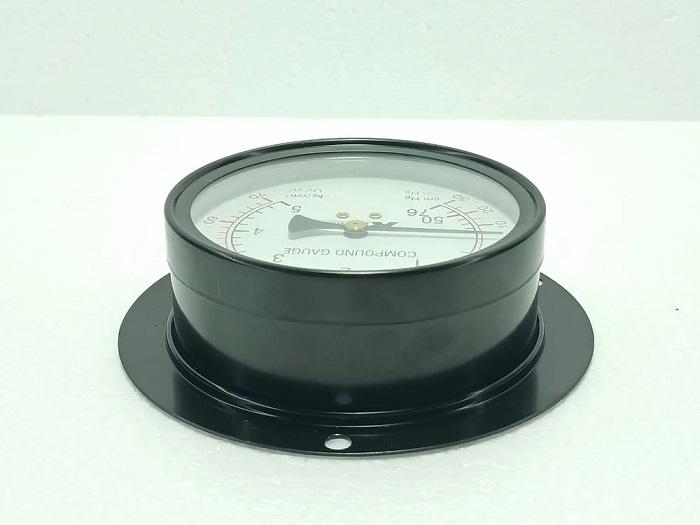

Compound gauges often use a Bourdon tube mechanism. This is a curved, flexible tube that changes shape in response to pressure changes. When pressure is applied inside the tube, it attempts to straighten. This movement drives a mechanical pointer on a dial face. For compound gauges, the dial includes both vacuum and pressure scales.

These instruments are mechanical, so they do not require external power sources. Their simplicity and reliability make them a common choice in many industrial settings. The dial is marked in units such as psi, inches of mercury, or bar, depending on the region and the application.

Typical Pressure Range of Compound Gauges

Understanding Measurement Units

Before discussing specific ranges, it is important to define the measurement units used. In the United States, pressure is most commonly measured in pounds per square inch or psi. Vacuum pressure is often measured in inches of mercury. In other countries, pressure may be measured in bar or kilopascal.

One atmosphere of pressure is equal to about 14.7 psi or 29.92 inches of mercury. This is the baseline from which vacuum and positive pressure are measured. A perfect vacuum is 0 psi absolute or negative 14.7 psi gauge pressure. However, in practical settings, it is rare to achieve a perfect vacuum.

Common Vacuum to Pressure Ranges

A typical compound gauge will measure vacuum from negative 30 inches of mercury to a positive pressure range. One common range is from negative 30 inches of mercury to 60 psi. Another frequent configuration is from negative 30 inches of mercury to 100 psi. These values provide enough resolution for most commercial and industrial systems.

The vacuum portion of the gauge usually starts at zero and moves counterclockwise to negative 30 inches of mercury. The pressure portion moves clockwise from zero to the positive end of the scale. The zero point sits in the middle of the dial, providing balance for easy reading.

Some compound gauges offer smaller or larger pressure ranges depending on application. For example, a gauge used in a low-pressure refrigeration system may measure from negative 30 inches of mercury to 30 psi. On the other hand, a compound gauge for high-pressure hydraulics might go from negative 30 inches of mercury to 160 psi or more.

Factors Affecting Range Selection

The choice of pressure range for a compound gauge depends on several factors. First is the expected pressure range of the system. Selecting a gauge with too small a range may cause the needle to exceed the dial’s limits. This can damage the mechanism or give false readings. Choosing a gauge with too large a range may reduce accuracy.

Second is the need for safety. Gauges must withstand pressure spikes and overloads. Many gauges are designed to handle 130 percent of their full scale without damage. Engineers must consider these safety margins when selecting a gauge.

Third is the need for clarity. A gauge that spreads its scale too broadly may have markings that are too small to read easily. A good design balances the need for accuracy, safety, and readability.

Applications That Rely on Compound Gauges

Use in HVAC Systems

Heating, ventilation, and air conditioning systems often rely on compound gauges. In these systems, both suction and discharge pressures must be monitored. A compound gauge helps technicians diagnose leaks, measure refrigerant levels, and confirm system balance.

In HVAC systems, compound gauges are usually part of a gauge manifold. This device contains multiple gauges for high and low side readings. The compound gauge typically connects to the low-pressure side, where both vacuum and low positive pressures may occur.

Use in Pumps and Compressors

Pumps and compressors also benefit from compound gauges. In a suction line, pressure may drop below atmospheric level during operation. A compound gauge allows the operator to observe how much vacuum is created. On the discharge side, pressure rises above atmospheric levels. A compound gauge ensures that both parts of the cycle are clearly monitored.

Monitoring suction pressure helps detect clogged filters or air leaks. Monitoring discharge pressure helps confirm that the pump is working efficiently. In both cases, accurate pressure readings support preventive maintenance and system optimization.

Use in Laboratories and Process Systems

Laboratory environments and industrial process systems often use compound gauges for measurement and control. In vacuum chambers, chemical reactors, or sealed containers, both vacuum and positive pressure states may occur. Compound gauges offer a flexible tool for monitoring these changes without needing multiple instruments.

Advantages of Using Compound Gauges

Simplicity and Reliability

One of the main advantages of compound gauges is their simplicity. They require no external power, are easy to read, and can be installed in many locations. Their mechanical nature makes them durable and low maintenance.

They are also less prone to electronic failure. In environments where moisture, dust, or vibration might damage digital instruments, compound gauges continue to function.

Versatility in System Monitoring

Compound gauges provide a full view of pressure behavior. Instead of using separate gauges for vacuum and pressure, one compound gauge does both. This saves space, reduces cost, and simplifies system layout.

Because of this versatility, compound gauges are common across many industries. From water treatment plants to fuel systems and from HVAC units to laboratory equipment, these instruments offer reliable and accurate pressure monitoring.

Conclusion

Compound gauges are vital tools in mechanical flow systems. They provide a unique function by measuring both vacuum and positive pressure on a single dial. Their typical pressure range spans from negative 30 inches of mercury up to 60, 100, or even 160 psi, depending on the application.

Choosing the right pressure range for a compound gauge depends on the needs of the system. Engineers must consider system pressure, safety margins, and readability. When chosen correctly, compound gauges provide accurate and durable pressure monitoring.

Their use in HVAC, pumping, compression, and laboratory systems shows their value. Compound gauges support efficient system operation, early fault detection, and safe working conditions. With their wide range and practical design, compound gauges remain essential tools in mechanical engineering and process control.
