In the world of industrial measurement, flow meters play a central role. They help engineers monitor the flow of liquids and gases in pipelines. One technology gaining popularity for its flexibility and accuracy is the ultrasonic flow meter. Specifically, clamp-on ultrasonic flow meters​ offer a non-invasive way to measure flow without cutting into the pipe or stopping the system. This makes them ideal for temporary or permanent installations where shutdown is not an option.

Clamp-on ultrasonic flow meters are known for their easy installation, minimal maintenance, and ability to provide accurate results across a wide range of applications. In this article, we will explore how these devices function, their internal principles, and why they are becoming a trusted tool in many industries. We will also examine some limitations and important considerations for their effective use.

Basic Principles of Ultrasonic Flow Meters

How Ultrasonic Measurement Works

Ultrasonic flow meters work based on the principle of sound waves. These devices use ultrasonic signals to measure the flow of fluid inside a pipe. The meter emits sound waves from one transducer, which travel through the pipe and fluid to a second transducer. By measuring the time it takes for the sound to travel in both directions, the meter can determine how fast the fluid is moving.

When the fluid is still, the sound waves take the same amount of time to travel in both directions. But when the fluid flows, the sound waves traveling with the flow move faster than those going against it. This difference in time is used to calculate the flow rate. The greater the time difference, the faster the fluid is moving.

This method is highly accurate and does not rely on moving parts or mechanical interaction with the fluid. Because of this, ultrasonic flow meters are less prone to wear and tear and can measure flow without causing pressure drops.

Clamp-On Design Explained

What Makes Clamp-On Technology Unique

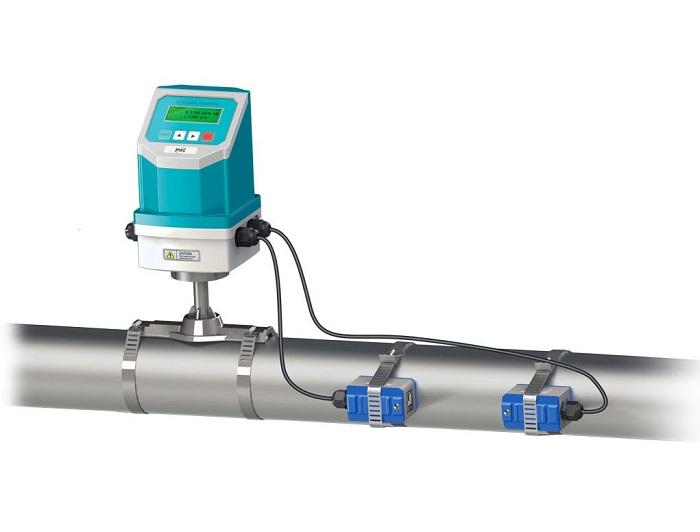

Clamp-on ultrasonic flow meters are different from in-line models. They do not require the pipe to be cut or modified. Instead, the transducers are clamped onto the outside of the pipe. The sound waves pass through the pipe wall and the liquid inside. This design allows for easy installation on existing pipes, even in hard-to-reach locations.

Clamp-on systems are especially useful in temporary measurements or in systems that must remain active at all times. Because they are installed externally, there is no contamination risk to the fluid, and no need for pressure relief or pipe drainage.

Clamp-on models come in two main types. One uses a single pair of transducers. The other uses multiple pairs for better accuracy and for dealing with complex flow profiles or larger pipes.

Installation and Setup

Setting up a clamp-on ultrasonic flow meter is straightforward. The technician first selects a clean, straight section of pipe. Transducers are then mounted at a specific distance from each other. This distance depends on the pipe size and the type of fluid. A coupling gel is often used between the transducers and the pipe to help the sound waves pass efficiently.

The device is connected to a transmitter or display unit. After setup, the meter is calibrated based on the pipe material, fluid type, and pipe diameter. Once configured, the system begins measuring flow instantly.

Advantages of Clamp-On Ultrasonic Flow Meters

Non-Invasive Nature

The biggest advantage of clamp-on ultrasonic flow meters is their non-invasive installation. They allow engineers to take flow measurements without interrupting the process. This is especially useful in water treatment plants, HVAC systems, and food and beverage industries where stopping the system would cause delays or contamination.

These meters are also perfect for testing and verifying other instruments. For example, maintenance teams can use them to check permanent in-line flow meters and confirm their accuracy.

Suitability Across Applications

Clamp-on ultrasonic flow meters can measure a wide range of fluids. They work well with clean liquids such as water, oils, and chemicals. Some advanced models can even measure slurries or liquids with moderate levels of suspended solids.

They are also highly portable. Many units are lightweight and battery-powered, making them suitable for field use and testing multiple sites. With the right sensors, they can handle small pipes used in laboratories or very large pipes used in industrial plants.

Cost and Safety Benefits

Because clamp-on systems do not alter the pipe, there are no cutting costs, no welding, and no downtime. This makes them more affordable for temporary installations. They also remove the risk of leaks or pressure loss. In hazardous areas, they offer a safe way to monitor flow without exposing workers to dangerous substances.

Limitations and Considerations

Challenges with Pipe Material and Surface

While clamp-on ultrasonic flow meters work with many materials, certain pipe types can make installation more difficult. For example, very thick or corroded pipes may block sound waves. Pipes with heavy insulation may require special sensor mounts or removal of insulation in a small area.

The outer surface of the pipe must be smooth and free of rust or paint. Rough surfaces reduce the accuracy of sound transmission. Proper preparation of the pipe is essential for reliable results.

Dependence on Fluid Properties

Ultrasonic flow meters depend on the clarity of the fluid. Air bubbles, high solids content, or layers of different materials inside the pipe can disrupt the sound waves. In such cases, readings may be less accurate or unstable.

Clamp-on devices are generally not used for gas measurement. The sound waves do not travel as well in gas as in liquids. For gas applications, other types of flow meters may be more appropriate.

Sensitivity to Flow Profile

The accuracy of ultrasonic measurement also depends on having a steady and predictable flow profile. The best results come from installing the meter on a straight pipe section with no bends, valves, or fittings nearby. These can cause turbulence and affect how the sound waves behave.

Some advanced models compensate for these factors by using multiple measuring paths or averaging the results over time. However, careful site selection remains important.

Maintenance and Longevity

Low Maintenance Requirements

Because clamp-on ultrasonic flow meters have no moving parts and do not touch the fluid, they require little maintenance. Once installed, they can operate for years without recalibration.

Cleaning the transducers and checking their alignment from time to time is usually enough to keep the system working properly. Most problems arise not from the meter itself but from poor installation or changes in the pipe condition.

Durable in Harsh Conditions

Many models are designed to withstand outdoor and industrial environments. They are made with rugged housings that resist water, dust, and temperature extremes. Some versions are approved for use in explosive or hazardous zones.

Conclusion

Clamp-on ultrasonic flow meters offer a reliable and convenient solution for measuring flow in many applications. Their non-invasive design saves time, reduces risk, and cuts installation costs. They provide accurate data without disrupting operations or contaminating the fluid.

These devices work based on the travel time of sound waves through the fluid. By comparing signals sent in both directions, they calculate the flow rate with high accuracy. The external installation means they can be added to almost any system with minimal effort.

While they have some limitations, such as sensitivity to pipe condition and fluid clarity, clamp-on ultrasonic flow meters remain a powerful tool for modern industry. With proper setup and care, they deliver valuable data and help engineers manage processes more effectively.
