Flow measurement plays a vital role in many industries. It helps monitor processes, ensure safety, and improve efficiency. Among the many devices used for flow measurement, the rotameter ​stands out for its simplicity, accuracy, and reliability. Although it is one of the oldest types of flow meters, the rotameter remains widely used today. This is because it offers a clear visual reading and operates based on straightforward physical principles.

This article explores the operating principle behind a rotameter. It will describe how it works, why it is effective, and in what applications it is best suited. To understand the function of a rotameter, it is important to begin with the structure of the device and the forces acting within it.

Understanding the Rotameter

What Is a Rotameter?

A rotameter is a type of variable area flow meter. It measures the flow rate of liquids or gases in a vertical tube. The device consists of a tapered glass or plastic tube with a float inside. The float moves up and down depending on the flow rate. The wider section of the tube allows the float to rise when flow increases and drop when flow decreases. The reading is taken from the position of the float within the tube.

Basic Components

A standard rotameter has three main parts. These are the tapered tube, the float, and the scale. The tube is usually made from clear glass or plastic so that the user can observe the float. The float is often made of metal or plastic. It has a specific shape that affects how it interacts with the fluid. The scale is printed or marked on the tube to show flow rate values based on the float’s position.

Principle of Operation

Balancing of Forces

The working principle of a rotameter relies on the balance between two opposing forces. These are the downward gravitational force and the upward drag force created by the fluid.

When fluid enters the bottom of the rotameter tube, it flows upward and lifts the float. As the float rises, the cross-sectional area between the float and the tube increases. This causes the fluid velocity to decrease, and the drag force on the float is reduced. Eventually, the float reaches a point where the upward force of the fluid matches the downward force of gravity. At this position, the float becomes stable and remains suspended. The flow rate is read directly from the scale at the float’s center or widest point.

Influence of Tube Shape

The tapered shape of the tube is essential to the rotameter’s function. As the tube widens from bottom to top, the area around the float increases. This design creates a variable area for the fluid to pass through. The greater the flow, the higher the float rises to allow more fluid to pass. This simple geometric concept makes the rotameter self-regulating and responsive to changes in flow.

Characteristics of Rotameter Flow Measurement

Direct Visual Indication

One of the key advantages of the rotameter is that it provides a direct and continuous visual display of flow. There is no need for electrical power or complex electronics. The user can see at a glance whether flow is stable, increasing, or decreasing.

Dependence on Fluid Properties

The accuracy of a rotameter can be influenced by the type of fluid. Changes in density, viscosity, or temperature can affect how the float behaves. This is why rotameters are often calibrated for specific fluids under specific conditions. In some designs, interchangeable floats or correction factors are used to adjust for these differences.

Orientation Requirements

A rotameter must be installed vertically to function properly. The fluid must enter from the bottom and exit from the top. Any tilt or misalignment can lead to incorrect readings because gravity plays a key role in the float’s movement.

Applications of the Rotameter

Industrial and Laboratory Use

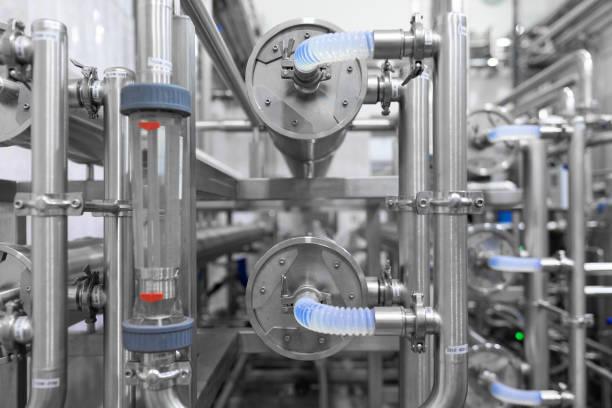

Rotameters are widely used in industrial applications such as chemical processing, water treatment, and oil refining. They are also found in laboratories, medical devices, and pilot plants. Their simple design, ease of use, and low maintenance make them ideal for settings where quick flow indication is needed.

In laboratory environments, rotameters are often used to measure the flow of gases such as air, oxygen, or nitrogen. In these cases, the rotameter helps ensure that gas mixtures are controlled precisely.

Low-Cost Flow Monitoring

For many applications, a rotameter provides a cost-effective solution. It requires no external power source and minimal calibration. In systems where approximate flow monitoring is sufficient, rotameters can replace more expensive or complex instruments.

Advantages and Limitations

Key Benefits

The rotameter has several advantages. It is easy to install and operate. It provides real-time visual feedback. It works reliably for a wide range of fluids. The device has no moving mechanical linkages, which makes it durable and low maintenance.

Because of its transparent body, the user can also see the condition of the fluid, detect bubbles, or spot contamination. These visual cues are helpful in many industrial and laboratory settings.

Practical Constraints

Despite its usefulness, the rotameter has some limitations. It is not suitable for opaque fluids or dirty liquids that can stain or clog the tube. It must always be installed vertically, which can be restrictive in some systems. It is also sensitive to vibration and sudden changes in flow.

The rotameter may not be the best choice for very low or very high flow rates, or for systems that require highly accurate digital data logging. However, for many day-to-day tasks, its simplicity remains a major advantage.

Conclusion

The rotameter operates on a simple but effective principle. It balances gravity and fluid force to measure flow rate through a tapered tube. Its design allows for immediate visual feedback without the need for power or advanced electronics. This makes it ideal for many industrial, medical, and laboratory applications.

While it does have limitations in terms of orientation and fluid type, the rotameter remains a dependable and widely used flow meter. Understanding its principle of operation helps engineers, technicians, and users make informed decisions about where and how to apply it.

As flow measurement technology evolves, the rotameter continues to prove its value in situations where simplicity, reliability, and visibility are required. Its core principle remains unchanged, even as newer digital technologies emerge. In the world of fluid mechanics, the rotameter stands as a lasting example of effective design rooted in physical laws.
