Slurry is a challenging fluid to measure accurately. It is a mixture of solid particles suspended in liquid, commonly found in industries like mining, wastewater treatment, food processing, and pulp and paper. Measuring the flow of slurry can be difficult due to its abrasive, viscous, and sometimes corrosive nature. Inconsistent flow patterns and varying particle sizes only add to the complexity.

Traditional flow meters, such as turbine or positive displacement types, often struggle with slurries. They may clog, erode, or deliver inaccurate readings. As industries increasingly depend on reliable flow data for process control, the need for accurate slurry flow measurement becomes critical.

This has led many engineers and technicians to ask: Are electromagnetic flow meters​ suitable for slurry?

This article provides a detailed analysis of the suitability of electromagnetic flow meters for slurry applications. It covers how these meters work, their advantages and limitations, and the factors to consider when using them in harsh, slurry-laden environments.

What Is a Slurry?

Before discussing the meter, it is important to understand the nature of slurry. Slurry is not a uniform fluid. It may consist of water mixed with sand, minerals, chemical waste, pulp, or even food particles. The solid content can vary from less than one percent to more than fifty percent by volume.

The characteristics of slurry include high viscosity, irregular flow, and abrasive behavior. These traits make it difficult for many flow measurement devices to perform accurately over time. Mechanical parts wear down, pressure drops increase, and readings become unreliable.

This is where electromagnetic flow meters come into the conversation.

How Electromagnetic Flow Meters Work

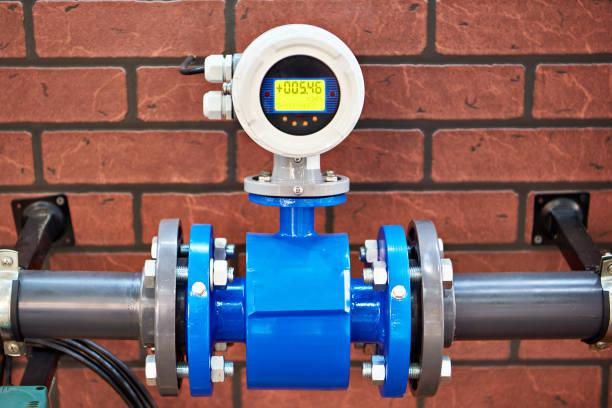

Electromagnetic flow meters, also known as mag meters, use Faraday’s Law of Electromagnetic Induction to measure fluid velocity. When a conductive liquid flows through a magnetic field, it induces a voltage. This voltage is directly proportional to the velocity of the fluid. Electrodes placed on the sides of the flow tube detect this voltage and convert it into a flow rate.

The key feature of electromagnetic flow meters is that they have no moving parts. The fluid flows through a liner within a magnetic field, without any obstructions or sensors inside the pipe. This design is ideal for fluids that are abrasive, corrosive, or contain solids.

Why Electromagnetic Flow Meters Work Well With Slurry

Electromagnetic flow meters are highly suitable for slurry for several important reasons.

First, they are non-intrusive. The lack of mechanical components means there are no parts to wear out or get clogged. This is critical in slurry systems where solid particles can cause damage to moving parts.

Second, they can handle fluids with a high solid content. As long as the slurry is electrically conductive, electromagnetic flow meters will work effectively. Most slurries, especially those based on water, meet this requirement.

Third, they offer high accuracy and repeatability even in difficult flow conditions. The sensors provide stable readings regardless of pressure, temperature, or viscosity changes. This makes them reliable for both batch and continuous operations.

Fourth, the internal liners and electrodes can be selected based on the slurry type. Rubber or ceramic liners resist abrasion, while specialized electrodes withstand chemical corrosion. This customization allows the meter to perform in aggressive slurry environments.

Finally, electromagnetic flow meters are easy to clean and maintain. Since there are no narrow passages or moving parts, the risk of blockages is low. Routine maintenance is simplified, which reduces downtime and operating costs.

Limitations of Electromagnetic Flow Meters in Slurry Applications

Despite their advantages, electromagnetic flow meters are not perfect for every slurry application.

One limitation is that the fluid must be conductive. Non-conductive slurries, such as those based on oils or certain organic solvents, cannot be measured using electromagnetic technology.

Another concern is installation. Electromagnetic flow meters require proper grounding and a full pipe to function correctly. In slurry systems with variable flow rates or partially filled pipes, readings may become unstable.

Slurry can also cause electrode coating or fouling. Over time, particles may build up on the electrodes, reducing sensitivity. This requires periodic inspection and cleaning to maintain performance.

Additionally, high-solids slurries can cause excessive wear to the liner if not properly selected. Using the wrong materials may shorten the lifespan of the meter.

Choosing the Right Electromagnetic Flow Meter for Slurry

To ensure success in slurry applications, selecting the right electromagnetic flow meter is essential. Several factors must be considered.

The first is liner material. For abrasive slurries like those found in mining, rubber or polyurethane liners are often used. For chemically aggressive slurries, PTFE or ceramic liners may be more appropriate.

The second is electrode material. Stainless steel is commonly used, but for corrosive fluids, materials like Hastelloy, platinum, or titanium may be required.

The third is the meter size and location. It is important to install the meter in a location where the flow is stable and fully developed. Straight pipe lengths upstream and downstream help reduce turbulence.

The fourth is maintenance access. Because slurry systems can be harsh, meters should be installed where they can be easily inspected and serviced.

When selected and installed properly, electromagnetic flow meters can perform reliably for many years, even in extreme slurry conditions.

Industrial Applications of Electromagnetic Flow Meters in Slurry

Electromagnetic flow meters are already used in many slurry-based systems around the world.

In the mining industry, they are used to measure tailings, ore slurry, and process fluids. In wastewater treatment, they monitor sludge flow between processing stages. In the food industry, they measure thick fluids like fruit pulp, starch mixtures, or tomato paste. In pulp and paper plants, they control the flow of fiber suspensions and chemicals.

Each of these applications demonstrates the flexibility and durability of electromagnetic flow meters in slurry environments.

Conclusion

Slurry is a demanding and complex fluid, but it must be measured accurately for process control and system efficiency. Many flow measurement technologies fail under these conditions, but electromagnetic flow meters stand out as a robust and reliable solution.

With their non-intrusive design, resistance to wear, and high accuracy, electromagnetic flow meters are indeed suitable for slurry. They work best when the slurry is conductive, the right materials are selected, and the meter is properly installed and maintained.

Whether handling mineral slurries, sludge, pulp, or industrial mixtures, electromagnetic flow meters provide the performance needed to meet the challenges of slurry measurement. As industries continue to seek more reliable and maintenance-free solutions, the role of electromagnetic flow meters in slurry applications will only grow stronger.
