What Fluids Can Rotameters Measure?

0
57

In the field of fluid measurement, engineers rely on a wide range of tools to ensure precision and safety. Among these tools, rotameters ​hold a unique place. These simple yet effective devices are widely used in industries ranging from chemical processing to medical gas flow monitoring. Rotameters are known for their reliability, visual clarity, and ease of installation. But one question often arises in both industrial and academic settings: what fluids can rotameters measure?

To answer this question fully, we must first understand how rotameters work. Only then can we explore the wide variety of fluids they can handle. This includes gases, liquids, and even some slurries, depending on the design of the rotameter. Each application requires careful selection of materials, flow ranges, and operating conditions. The following sections will break down these factors and help define the true versatility of rotameters.

Understanding Rotameters

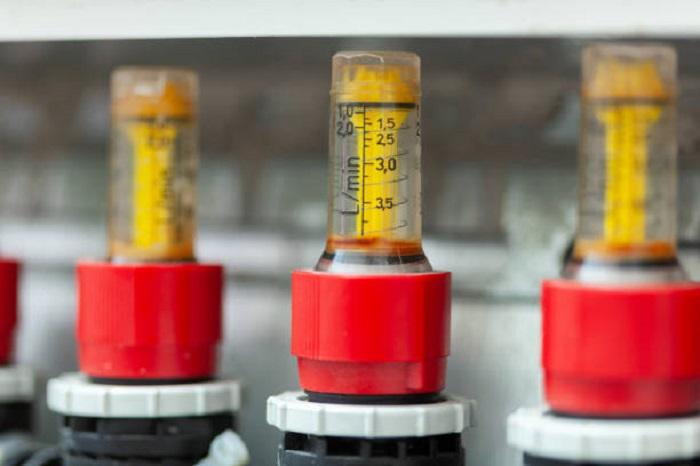

A rotameter is a type of variable area flow meter. It consists of a tapered vertical tube, usually made of glass or plastic, and a float that rises and falls within the tube. The fluid enters the bottom of the tube and flows upward. As the fluid flows, it pushes the float upward. The height of the float is directly related to the flow rate of the fluid.

The float reaches a point where the upward force of the fluid balances the downward force of gravity. At this equilibrium point, the area between the float and the tube is constant. This area allows a specific flow rate, which can be read on a calibrated scale. Rotameters offer a direct, visual indication of flow and do not require external power.

Their simple construction makes them low-maintenance. However, it also means they are sensitive to the physical and chemical properties of the fluid. This is why selecting the correct rotameter for a given fluid is important.

Measuring Gases with Rotameters

Rotameters are often used to measure gases. They are common in laboratories, HVAC systems, medical devices, and gas distribution systems. Common gases measured include air, oxygen, nitrogen, carbon dioxide, argon, helium, and hydrogen. These gases vary in density and viscosity, which affects the float behavior and flow reading.

To ensure accurate measurement, rotameters for gas applications are typically calibrated for a specific gas at a defined pressure and temperature. If the operating conditions change, correction factors must be applied. Manufacturers often provide conversion charts or software tools to assist in making these adjustments.

One key advantage of using rotameters for gas is their fast response time. Because gases are compressible and low in viscosity, the float reacts quickly to flow changes. This allows for quick adjustments and real-time monitoring. However, gas measurements are sensitive to pressure drops, and in some cases, rotameters may require a pressure regulator to maintain stability.

Measuring Liquids with Rotameters

Rotameters are equally effective for measuring liquids. In fact, they are widely used in water treatment plants, food processing lines, chemical dosing systems, and oil refining. Liquids are denser than gases, and this affects how the float behaves. Rotameters for liquid applications often feature larger floats and stronger tube materials to handle higher forces and potential pressure spikes.

Common liquids measured by rotameters include water, alcohols, oils, acids, and solvents. The key to successful liquid measurement lies in knowing the liquid’s density, viscosity, and chemical composition. Viscous fluids like glycerin or heavy oils require special float shapes and larger diameters to allow smooth movement. Highly corrosive liquids may require rotameters made from stainless steel, Teflon, or other resistant materials.

Temperature also plays a role. As the temperature of a liquid rises, its viscosity may decrease, affecting flow behavior. Rotameters must be calibrated or compensated accordingly. Some rotameters are equipped with temperature correction features or are used in conjunction with temperature sensors.

Handling Aggressive and Hazardous Fluids

Certain industries deal with highly aggressive or hazardous fluids. These can include acids like sulfuric or hydrochloric acid, strong alkalis, or toxic chemicals. Rotameters used in these settings must be constructed from corrosion-resistant materials. Glass tubes may be replaced with polycarbonate or metal tubes. Floats may be made from special alloys or coated with inert materials.

Sealing becomes critical in such cases. If a leak were to occur, it could cause harm to equipment or personnel. For these reasons, rotameters in chemical industries often include protective casings or double containment designs. These features allow them to safely handle a wide range of dangerous fluids.

Rotameters can also be used in pharmaceutical production where sterility is required. In these cases, materials must meet hygienic standards, and designs may include easy-to-clean surfaces and sterilizable parts.

Measuring Slurries and Suspended Solids

While rotameters are best known for clear fluids, they can sometimes measure fluids with suspended particles. These are called slurries and can be found in mining, wastewater treatment, and ceramics production. However, rotameters in these cases must be specially designed. The float and tube must be resistant to abrasion. The taper of the tube may be adjusted to avoid blockages.

Not all rotameters can measure slurries, and each application should be evaluated carefully. In many cases, flow meters with different technologies, such as magnetic or ultrasonic types, may be preferred. But for light suspensions or low particle content, rotameters can still be effective.

Temperature and Pressure Considerations

Fluids behave differently under various temperatures and pressures. A fluid that is a gas at one pressure may become a liquid under compression. A liquid may become more viscous as it cools. Rotameters must account for these factors. Standard rotameters are designed to operate within specific temperature and pressure ranges. Exceeding these ranges can lead to inaccurate readings or even damage.

For high-temperature fluids, metal tube rotameters are often used. They can handle fluids like steam or hot oil. For high-pressure gases, pressure-rated models with reinforced seals and special float materials are available. In each case, the proper rotameter must be chosen based on operating conditions.

Application-Specific Rotameters

Because rotameters are used in so many fields, they come in many forms. Some are designed for medical use, such as oxygen flow meters on anesthesia machines. Others are used in laboratories, where precise gas mixtures are needed. Still others are designed for industrial use, with rugged frames and high visibility.

This diversity allows rotameters to handle a wide range of fluids. Each version is tailored to the demands of the application. For instance, a rotameter used to measure pure nitrogen gas in a clean lab environment will look and function differently from one used to measure dirty cooling water in a factory.

Conclusion: The Versatility of Rotameters

Rotameters are versatile and reliable devices that can measure many kinds of fluids. From simple water to corrosive acids, from light gases to thick oils, rotameters continue to prove their value across many industries. Their ability to provide real-time, visual feedback makes them ideal for monitoring and control.

To get the best performance, engineers must select the right model for the fluid being measured. This includes considering factors such as chemical compatibility, pressure, temperature, and flow rate. When properly matched to the application, rotameters offer long service life and dependable accuracy.

Whether you are working in a lab, a factory, or a treatment plant, rotameters can help you measure fluid flow with confidence. Their straightforward design and flexible use make them a cornerstone of fluid measurement technology.
